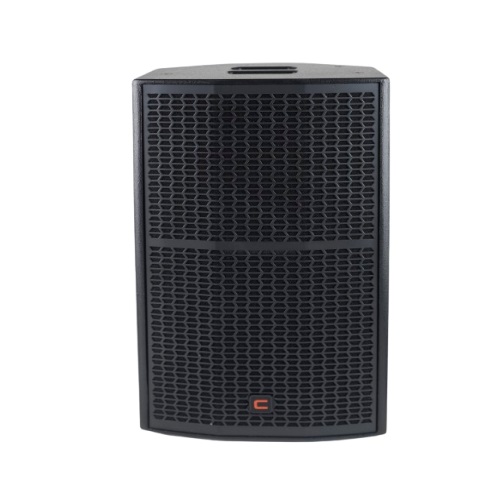

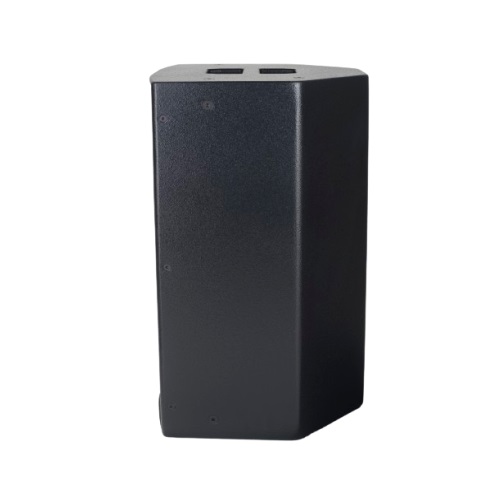

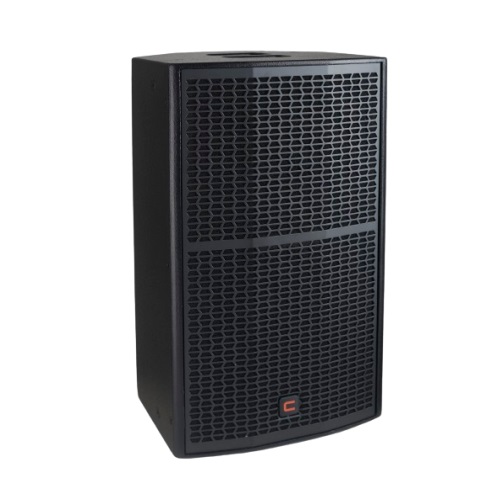

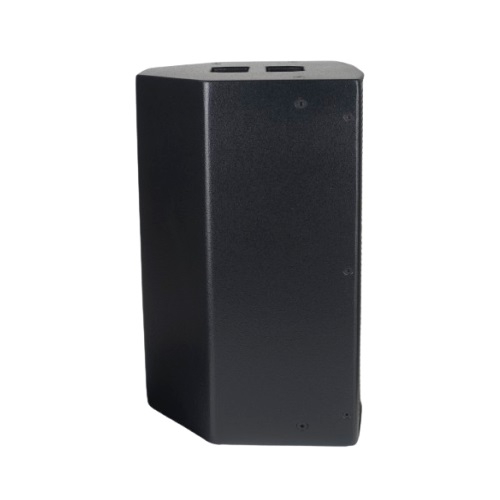

MODEL CT12V
Speaker type Multi-purpose full range
Power Handling (AES standard) 500W RMS / 2000W Peak
Nominal impedance 8 ohms
Frequency response (-6dB half space, no EQ) 51~22000Hz
Manufacturing Consistency tolerance ±2dB from 300 to 10000Hz
Average sensitivity 97dB/W/m (wideband 200~16000Hz)
Maximum Calculated SPL @ 1m 123dB continuous / 129dB Peak
Nominal Directivity (-6dB) 80° x 50° above 1200Hz
Recommended low cut filter 40Hz 24dB/oct in full range mode, 80-120Hz with subwoofer
Low Frequency driver 12″ CELTO driver, 3” In / Out Voice coil
High Frequency driver 1” exit CELTO ACD40, 1.7” Voice coil, HSP Annular Ring Radiator
Crossover Passive mode only 1600Hz, 12dB/oct on LF, 18dB/oct on HF
Flying hardware 12 M8 points

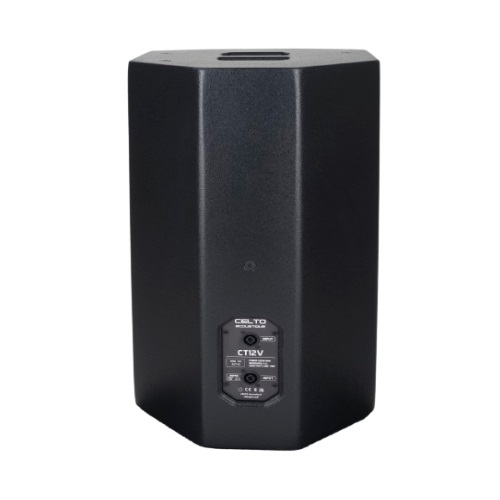

Connectors 2x NEUTRIK SpeakON® NL4MP
Floor Monitor use Yes, dual symetric angle
Pole mount 35mm top hat (0° and 10° angles)
Cabinet Exterior grade Birch Plywood
Tongue & Groove construction
Cabinet finish Textured Waterborne Black coating
Acoustic PU foam behind Front grill
Size (WxHxD) 356x620x345 mm
Weight 20kg net, 25kg gross
