Speaker type Coaxial Multi-purpose full range
Power Handling (AES standard) 300W RMS / 1200W Peak
Nominal impedance 8 ohms
Average sensitivity 97dB / 1W / 1m
Maximum SPL (calculated) 122 dB RMS / 128dB Peak
Frequency response (-6dB no preset) 78~22000Hz
Nominal directivity (-6dB) 90° Conical
Cabinet material Exterior grade Baltic Birch Plywood
Cabinet finish Ruberrized PolyUrea Black coating, Integral Airnet fabric on Front grill
Floor monitor use Yes (symetrical)
Flying hardware 7 M8 points + 36 positions Aluminum Yoke plate
Mounting hardware Ø35mm adapter (optional)
LF 10″ coaxial CELTO Acoustique 10CX300
Woofer Chassis Die Cast Aluminum
Woofer Voice coil diameter 2.5″ / 65mm
HF CELTO Acoustique ACD40 (in coaxial mounting)
HF RMS power (AES standard) 80W above 1.5kHz
HF Exit 1″ / 25mm
HF Voice coil diameter 1.7″ / 44mm
HF Diaphragm HSP Annular Ring Radiator
Crossover 1.5kHz 2-way passive network

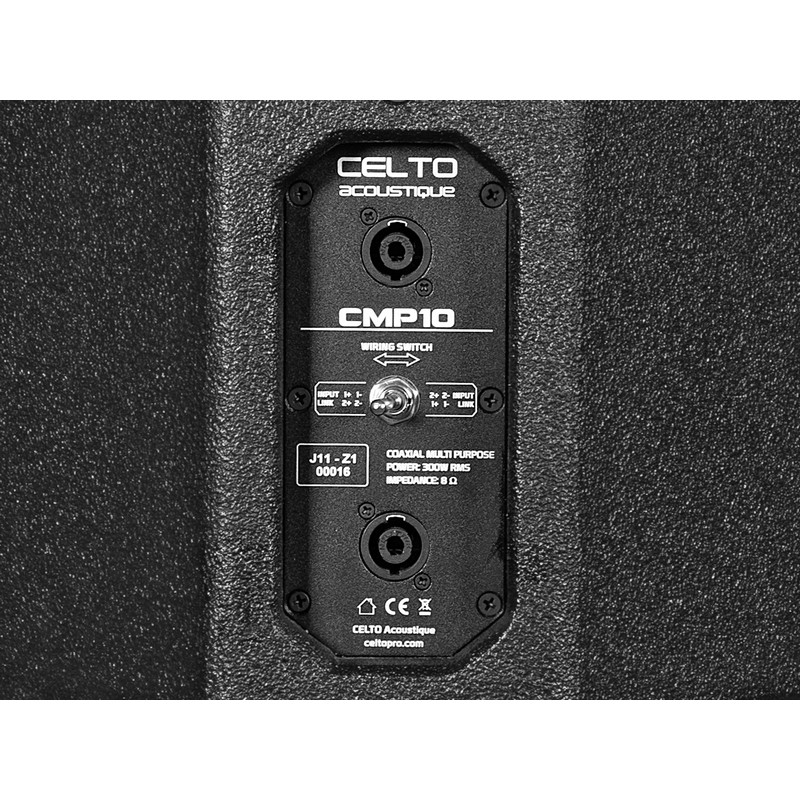

Connectors Genuine NEUTRIK, 2pcs Speakon NL4MP with switch for 1+/-1 or 2+/2- input
Speaker size (HxWxD) 306x440x298 mm
Speaker Weight 15kg
Shipping information 18.6kg 410x570x410 mm
Accessories CMP10-YOKE CMP10-SBAG (padded cover bag) | CPC-70 (pole bar with crank) | CCA-MA (mounting adapter)
