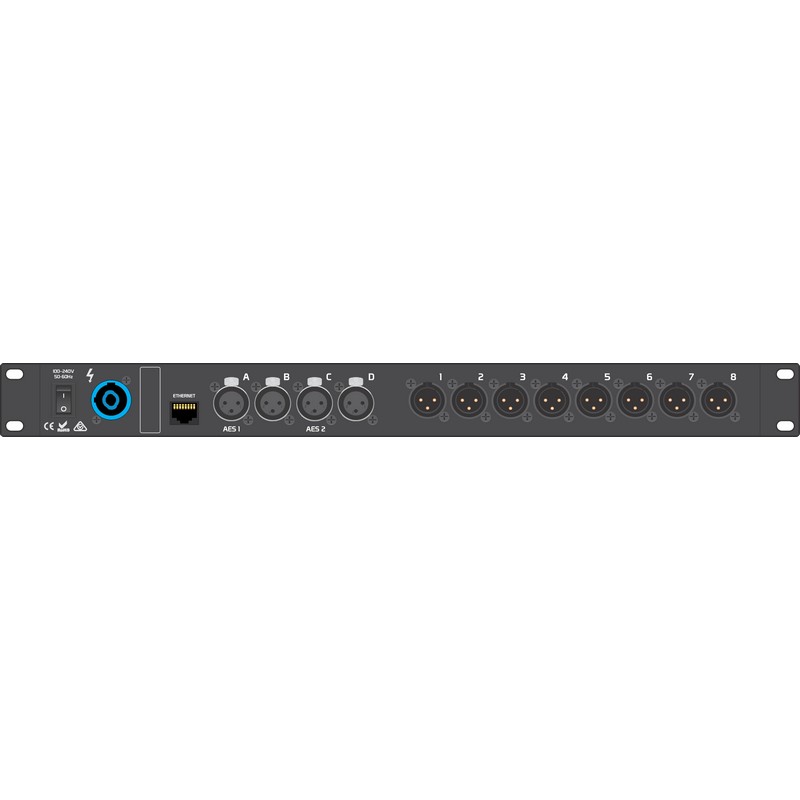

Analog Inputs 4 female NEUTRIK XLR electronically balanced / RF filtered > 40kΩ Impedance +21dBu maximum input level 118dB A-weighted dynamic range A/D converters
Digital Inputs 2 stereo AES/EBU (switchable to analog on front panel UI and software)
Analog Outputs 8 male NEUTRIK XLR electronically balanced / RF filtered, 120Ω Impedance, +22dBu maximum output level, 123dB A-weighted dynamic range D/A converters
Connectivity 100MB Ethernet (RJ45). Communication protocol based on TCP/IP
System Performance 96kHz sampling rate, 64-bit accumulators, Frequency response of 20~20k Hz at -0.5dB, THD+N lower than 0.001% at +4dBu, 1khz, 0dB input, Interchannel crosstalk >115dB
Power 100~250Vac / 50-60Hz / 35W max consumption, PowerCon 3 pin
Size (WxHxD) 482×44.5x200mm net, 550x110x260mm gross
Weight 1.5kg net, 2.5kg gross
